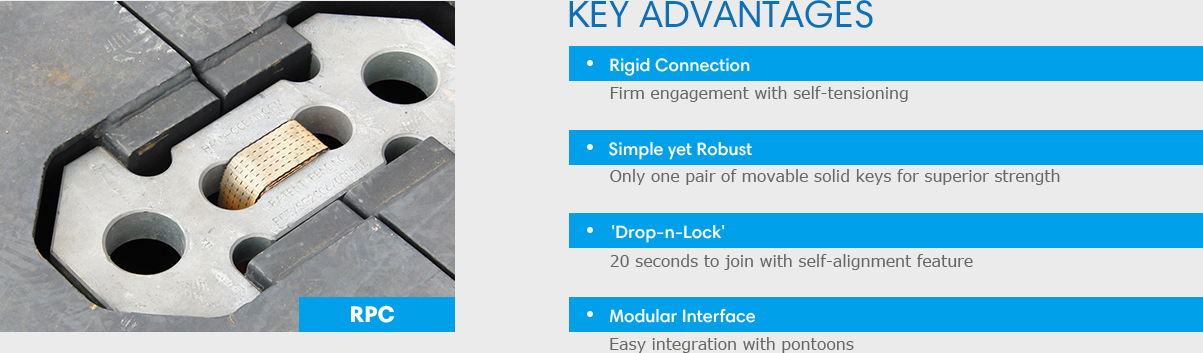

RigidFloat Rigid Pontoon Connector (RPC)

The Rigidfloat connectors are designed for connecting multiple pontoons in rough seas, initially for defense applications and subsequently for water constructions and architectures. As its name implies, the Rigid Pontoon Connector (RPC) offers completely rigid joints at the interfaces between multiple pontoons to achieve an extremely stable floating platform in very large size.

Specifications

Applications

  • Transformable Floating Entertainment Hub (TFEH)
  • Offshore Renewable Energy Production Base
  • Floating Oil & Gas Production and Storage
  • Mega Cruise Terminal
  • Floating Breakwater
  • Floating Stadium
  • Floating Homes
  • Port Facility
  • Marina Jetty

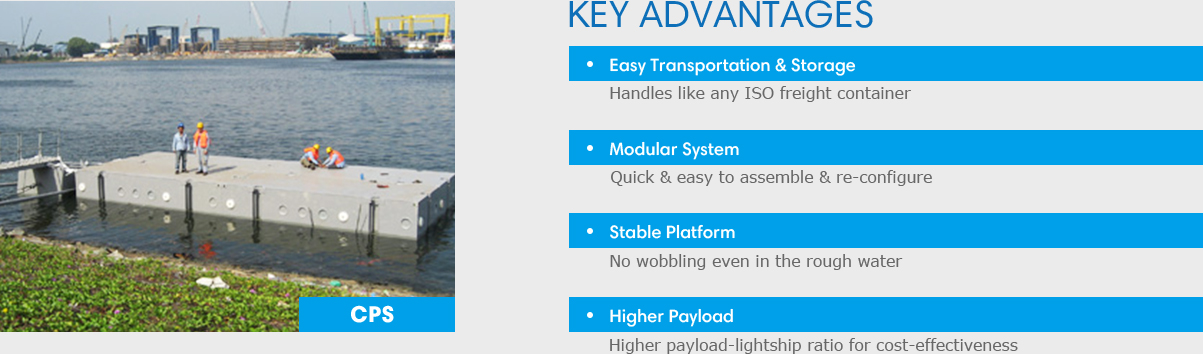

RigiFloat Containerized Pontoon System

The modular pontoons are designed based on ISO freight container standard and have been certified by DNV-GL. The pontoons include not only the ISO corner castings but also the RPC connectors, which enables easy transportation & deployment, low cost storage on land and variable configuration using the modular pontoons.

Specifications

Applications

  • Floating Event Stages
  • Floating Fireworks Platforms
  • Emergency Sea Rescue Platforms
  • Coastal Relief Platforms
  • Collision Barriers
  • Offshore Jack-up Barges
  • Floating Causeways
  • Floating Bridges
  • Floating Cranes
  • Floating Docks

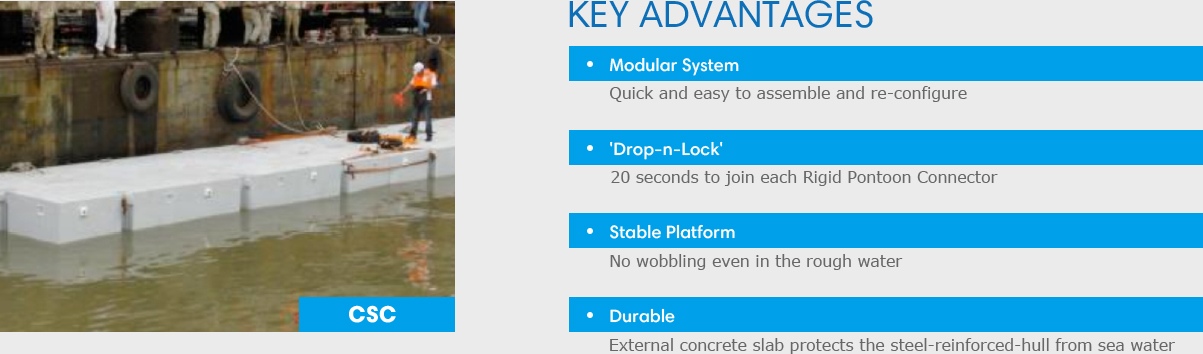

RigiFloat Concrete-Steel-Composite Pontoon

The modular pontoons are designed for long-term installations where durability is upmost important. The outer layer of the CSC pontoons is casted of water-proof concrete while the inner structure remains water-tight steel hull. The RPC connectors are integrated within the pontoon with essential strength. The lightship displacement or weight of CSC is larger or heavier than that of CPS, which offers superior stability and wave attenuation.

Specifications

Applications

  • Floating Homes
  • Transformable Floating Entertainment Hub (TFEH)
  • Collision Barrier
  • Marina Jetty
  • Floating Breakwater
  • Mega Cruise Terminal

Detachable Crane Barge

The crane barge design is based on and certified by DNV-GL. It is permitted to operate in offshore (100km away from coastal lines) and can survive in waves of 5m high. The barge can be loaded with any crawler crane of up to 180 ton and is fitted with ballast tanks with 200-ton water capacity. The barge is assembled using 19 units of CPS4088N pontoons. A total of 72 RPC connectors are used to join the pontoons rigidly together to achieve the necessary stability of the platform during the crane operations. Customization is possible upon customer request.

Specifications

Applications

  • Floating Homes
  • Transformable Floating Entertainment Hub (TFEH)
  • Collision Barrier
  • Marina Jetty
  • Floating Breakwater
  • Mega Cruise Terminal

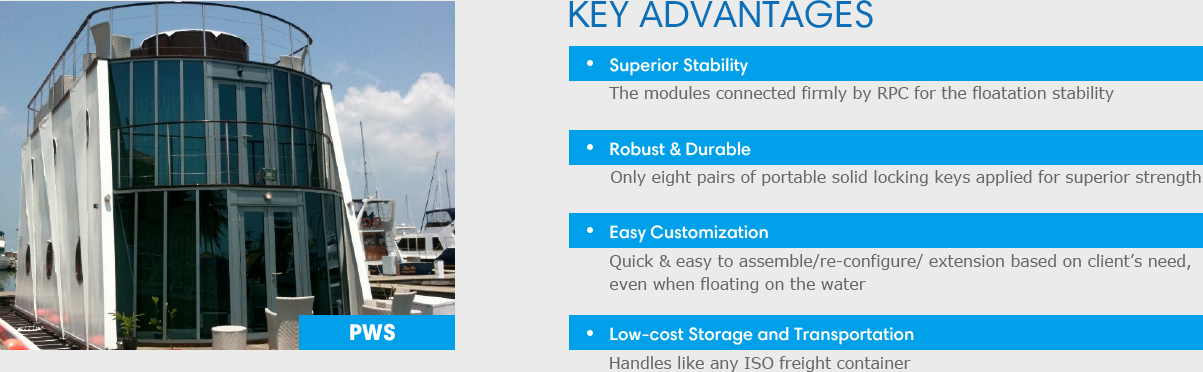

MODULAR FLOATATION SYSTEM FOR FLOATING HOUSE (MFS)

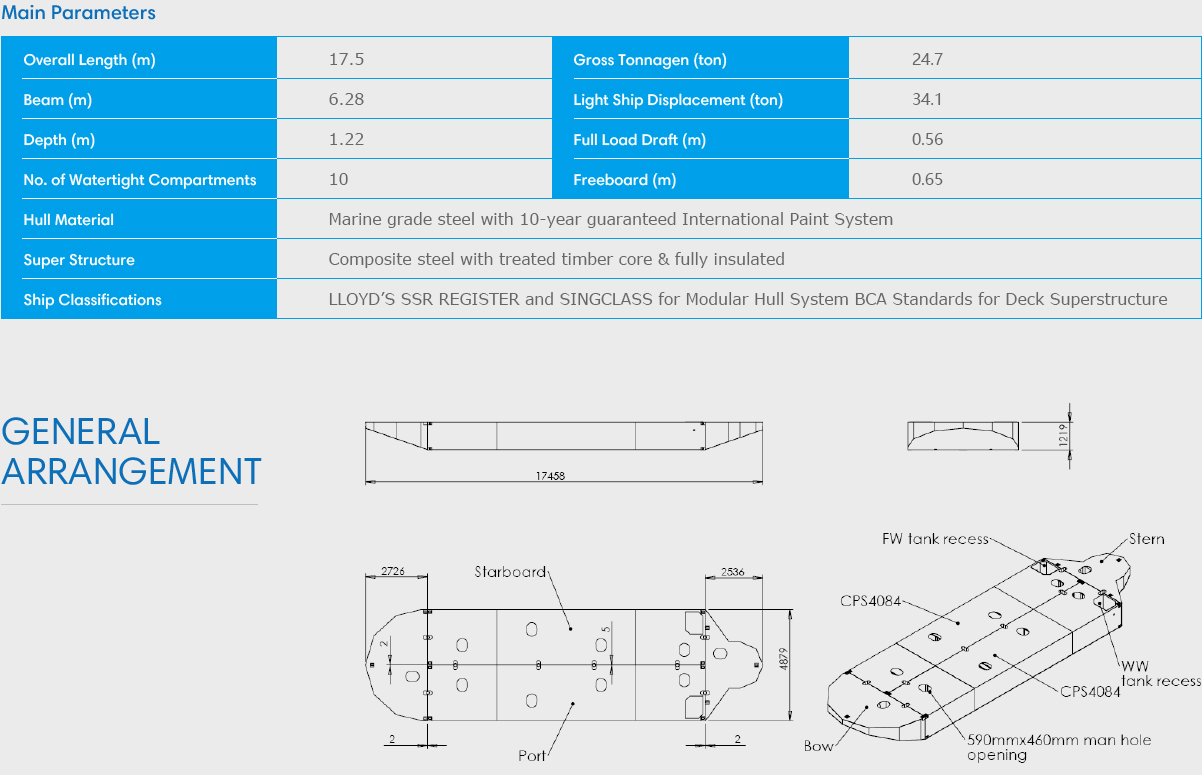

The CPS and RPC products offer the possibilities to construct floating architectures that can be easily customised for unique and creative designs of our clients. The Personalized Water Suites (PWS) designed by Nautique has utilized the Hann-Ocean’s standard floatation system, comprising two units of CPS4084 pontoons, one bow and one stern, to deliver the 2,200 square feet of three-story high luxury five-star accommodation on the water. Hann-Ocean has designed and supplied four sets of the modular floatation system for the PWS to the client with complete satisfaction.

Specifications

Applications

  • Transformable Floating Entertainment Hub (TFEH)
  • Floating Houses/Hotels/Resorts
  • Floating Living Community
  • Floating Fish Farms
  • Port Facilities
